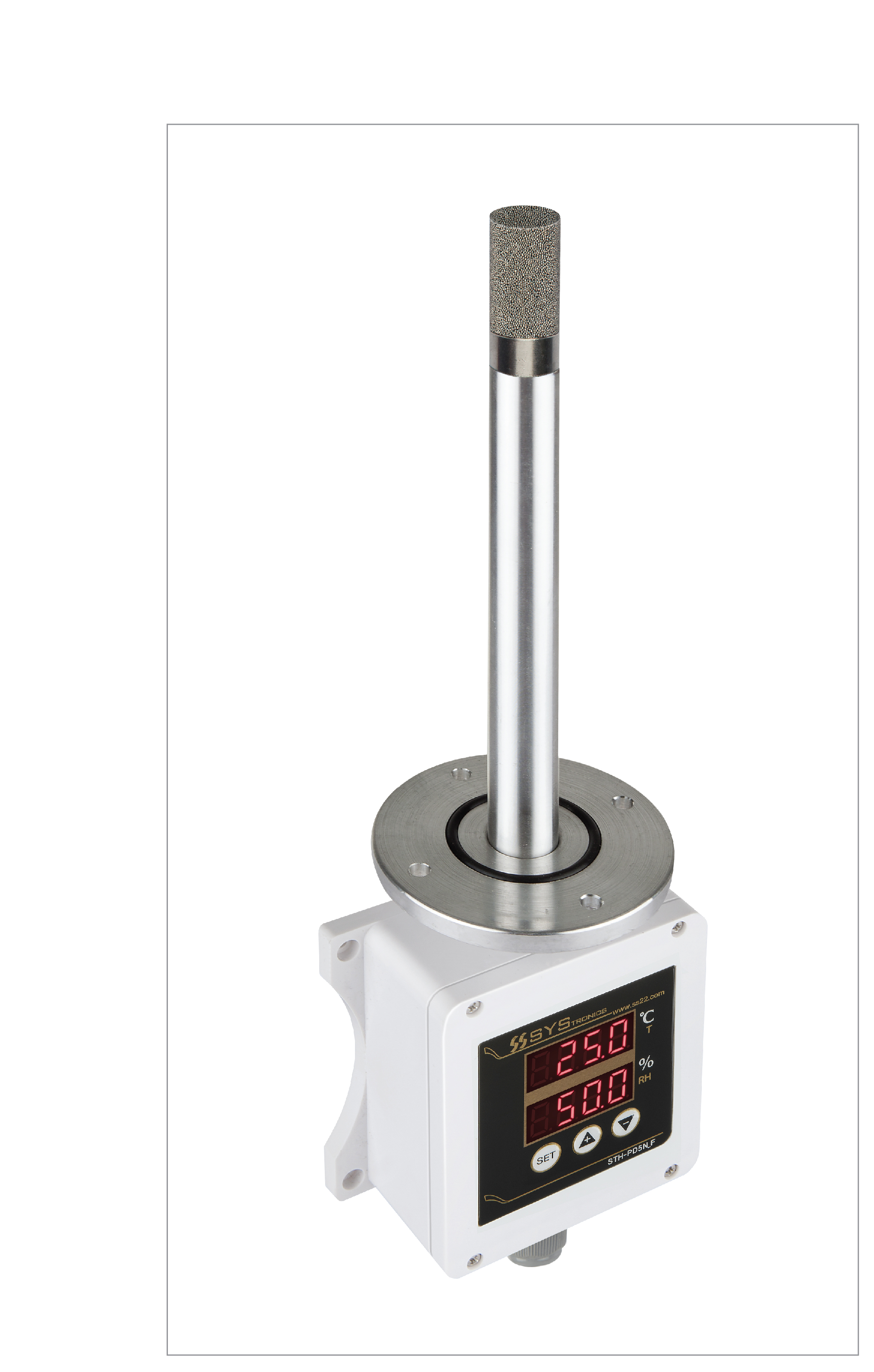

STH-PD5N_F is equipped with temperature·humidity sensor elements. This sensor is designed for duct installation. It is easy to use in the field where the temperature and humidity need to be precisely monitored such as the thermo-hygrostat, low-temperature warehouse. And It is a product that can output temperature and humidity data as analog signals. In addition, by positioning the FND and buttons on the front, you can easily control the temperature and humidity monitoring and setting of industrial sites and equipment.
 |
Feature • Digital temperature·humidity sensor • Monitoring with front panel FND • Designed for air duct • Temperature and humidity data analog signal output |
| Item | Contents | Remarks |
| Measuring range | -20 ~ 80℃ | · |
| Accuracy | ±0.3℃ | Max ±0.4℃ |
| Resolution | 0.015℃ | · |
Reaction time | 2.0 sec | · |
| Item | Contents | Remarks |
| Measuring range | 0 ~ 100% RH | · |
| Accuracy | ±3% RH | Max ±4.5% RH |
| Resolution | 0.01% RH | · |
Reaction time | 8.0 sec | · |
| Item | 내 용 | 비 고 |
| Input power | DC 24 Vdc | · |
| Power consumption | 75mA / 1.8W | At 24Vdc |
Operating temp. | -20 ~ 80℃ | Non condensing |
| Operating humi. | 5 ~ 95% | Non condensing |
| Storage temp. | 0 ~ 60℃ | Non condensing |
| Body weight | 324.5g | Cable basic 3M standard, including probe (AL) |
| Bracket weight | 54.5g | Material : aluminum |
| Cable weight | 94.0g | · |
Cable length | Basic 3M | Length changeable (AWG standard: more than 20) |
