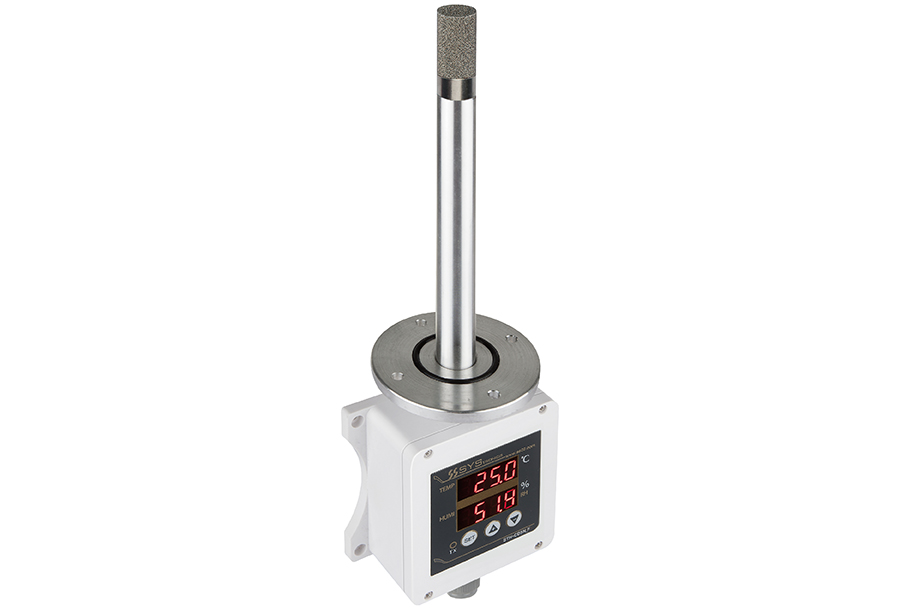

STH-CD5N_F
Temperature, Humidity Sensor for Communication
STH-CD5N_F is equipped with digital temperature and humidity sensor elements. It is a sensor designed for the place where air duct is installed. It is easy to use in the field where the temperature and humidity need to be precisely monitored such as the thermo-hygrostat, low-temperature warehouse
STH-CD5N_F enables precise and rapid measurement and can be combined with a monitor and controller for remote management and system configuration. In addition, by positioning the FND and buttons on the front, you can easily control the temperature and humidity monitoring and setting of industrial sites and equipment. Also RS-485 Modbus communication method can be applied to remote monitoring.
Feature
• Duct type digital temperature and humidity device
• Temperature and humidity monitoring with front panel FND
• Remote monitoring via RS-485 communication
Temperature sensor specification
| Item | Contents | Remarks |
| Measuring range | -20 ~ 80℃ | · |

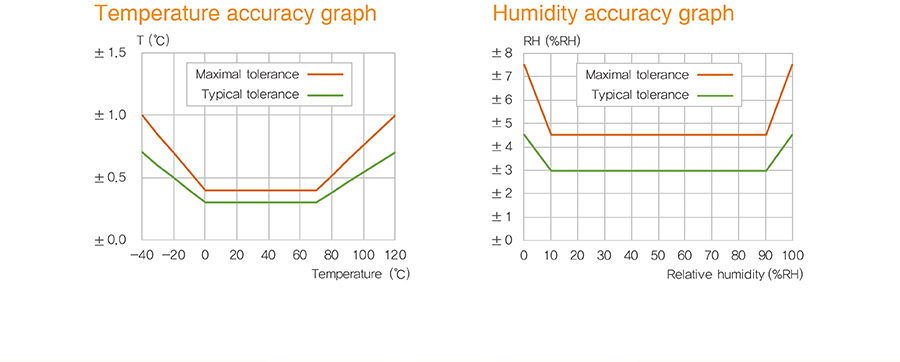

| Accuracy | ±0.3℃ | Max ±0.4℃ |
| Resolution | 0.015℃ | · |
Reaction time | 2.0 sec | · |
Humidity sensor specificationItem
| Item | Contents | Remarks |
| Measuring range | 0 ~ 100% RH | · |
| Accuracy | ±3% RH | Max ±4.5% RH |
| Resolution | 0.01% RH | · |
Reaction time | 8.0 sec | · |
Controller specificationItem
| Item | Contents | Remarks |
| Input power | DC 12 ~ 24 Vdc | 10 ~ 36 Vdc |
| Power consumption | 30mA / 360mA | at 12Vdc |
| Comms. port | RS-485 | 1 Port / Modbus RTU |
Operating temp. | -20 ~ 80℃ | Non condensing |
| Operating humi. | 5 ~ 95% | Non condensing |
| Storage temp. | 0 ~ 60℃ | Non condensing |
| Body weight | 301.5g | Weight with 3M cable |
Cable length | 20M | Can be changed to 3, 5, 10, 30, 50M |

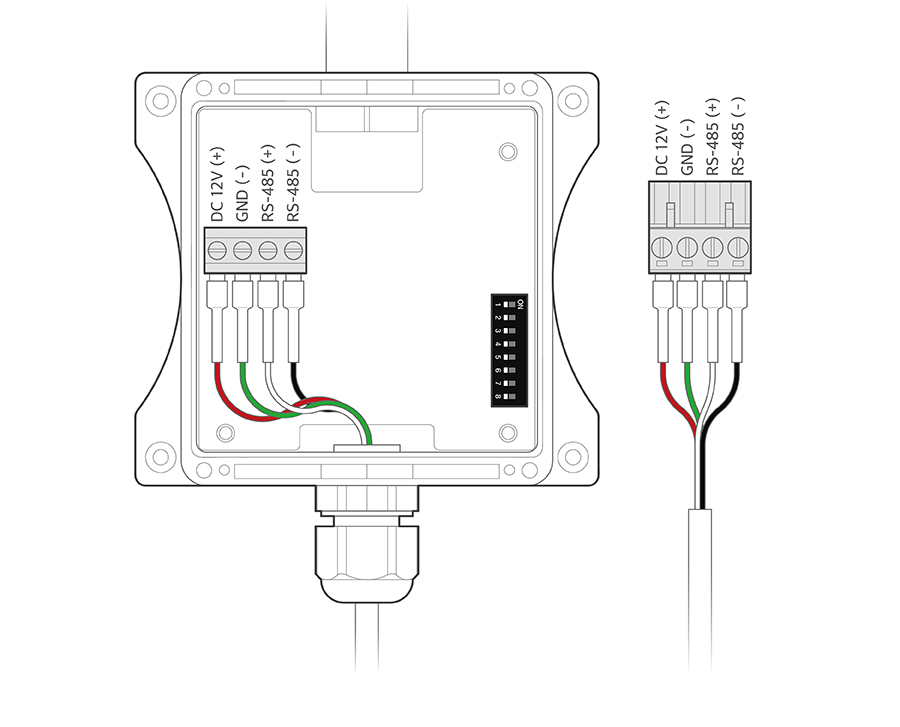

Wiring method
| Color | Contents | Function |
| Red | Sensor power supply (DC 12V / +) | Power supply terminal |
| Green | Sensor power supply (DC 12V / -) | |
| White | Communication terminal (RS-485 / L+) | Communication terminal |
Black | Communication terminal (RS-485 / L-) |
